SELECT ORDER   Select OrderModel Number

MODEL NUMBER

频率

动态范围

扫描速度

方向性

底噪

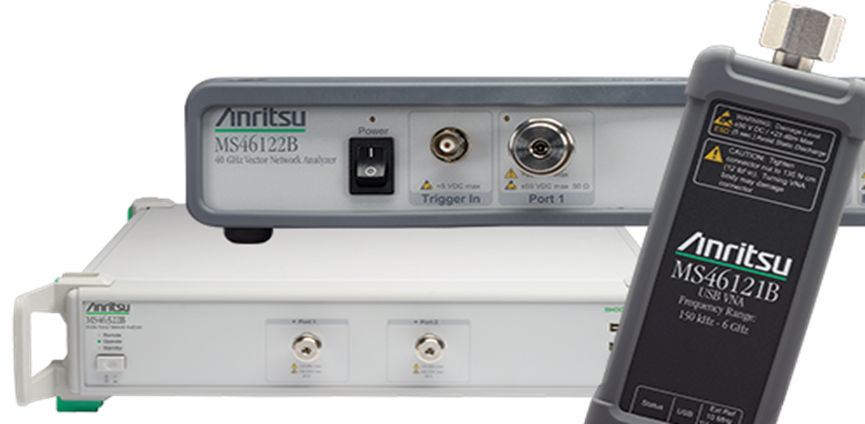

MS46121B
单端口 USB 矢量网络分析仪

40 MHz — 4 GHz
150 kHz — 6 GHz

N/A

120 µs/point, typical

42 dB, typical

N/A

MS46122B
小型 USB 矢量网络分析仪

1 MHz — 8 GHz
1 MHz — 20 GHz
1 MHz — 43.5 GHz

> 100 dB

130 µs/point, typical

42 dB, 1 MHz — 10 GHz
36 dB, 10 GHz — 30 GHz
30 dB, 30 GHz — 43.5 GHz

N/A

MS46322B
经济型矢量网络分析仪

1 MHz — 8 GHz
1 MHz — 20 GHz
1 MHz — 43.5 GHz

> 100 dB

130 µs/point, typical

42 dB, 1 MHz — 10 GHz
36 dB, 10 GHz — 30 GHz
30 dB, 30 GHz — 43.5 GHz

N/A

MS46522B
Shockline™ 双端口高性能 VNA

50 kHz — 8.5 GHz
50 kHz — 20 GHz
50 kHz — 43.5 GHz
55 GHz — 92 GHz

最高 140 dB

30 微秒/点

> 42 dB, 300 kHz — < 10 GHz
> 36 dB, 10 GHz — 20 GHz
> 32 dB, 20 GHz — 30 GHz
> 30 dB, 30 GHz — 43.5 GHz
> 27 dB, 60 GHz — 90 GHz

不适用

MS46524B
Shockline™ 4 端口高性能 VNA

50 kHz — 8.5 GHz
50 kHz — 20 GHz
50 kHz — 43.5 GHz

最高 140 dB

30 微秒/点

> 42 dB, 300 kHz — < 10 GHz
> 36 dB, 10 GHz — 20 GHz
> 32 dB, 20 GHz — 30 GHz
> 30 dB, 30 GHz — 43.5 GHz

不适用

ME7838A4
VectorStar 4 端口宽带 VNA

70 kHz — 110/125 GHz

最高 123 dB

30 微秒/点

最高 40 dB

最低 -113 dBm

ME7838A/E/D
VectorStar 宽带矢量网络分析仪（VNA)

70 kHz — 110 GHz
70 kHz — 110/125 GHz
70 kHz — 145 GHz

mmWave Bands
170 GHz to 1.1 THz

124 dB maximum
124 dB maximum
125 dB maximum


100 dB maximum

30 μsec/point
30 μsec/point
30 μsec/point


30 μsec/point

40 dB maximum
40 dB maximum
40 dB maximum


30 dB maximum

-114 dBm minimum
-114 dBm minimum
-114 dBm minimum


-100 dBm minimum

MS4640B Series
VectorStar 家族：射频、微波、毫米波矢量网络分析仪

70 kHz — 70 GHz

142 dB maximum

20 μsec/point

50 dB maximum

-129 dBm minimum

MS2026C
VNA Master

5 kHz — 6 GHz

≥ 90 dB (Transmission @ 6 GHz)

350 µsec/point

≥ 42 dB

N/A

MS2028C
VNA Master

5 kHz — 20 GHz

≥ 85 dB (Transmission @ 20 GHz)

350 µsec/point

≥ 42 dB

N/A

MS2036C
VNA Master + 频谱分析仪

5 kHz — 6 GHz

≥ 90 dB (Transmission @ 6 GHz)

350 µsec/point

≥ 42 dB

N/A

MS2038C
VNA Master + 频谱分析仪

5 kHz — 20 GHz

≥ 85 dB (Transmission @ 20 GHz)

350 µsec/point

≥ 42 dB

N/A

MS2024B
VNA Master

500 kHz — 4 GHz

≥ 100 dB (Transmission)

850 µsec/point

≥ 42 dB

N/A

MS2025B
VNA Master

500 kHz — 6 GHz

≥ 100 dB (Transmission)

850 µsec/point

≥ 42 dB

N/A

MS2034B
VNA Master + 频谱分析仪

VNA 500 kHz — 4 GHz

SPA 9 kHz — 4 GHz

≥ 100 dB (Transmission)

850 µsec/point

≥ 42 dB

N/A

MS2035B
VNA Master + 频谱分析仪

VNA 500 kHz — 6 GHz

SPA 9 kHz — 6 GHz

≥ 100 dB (Transmission)

850 µsec/point

≥ 42 dB

N/A
